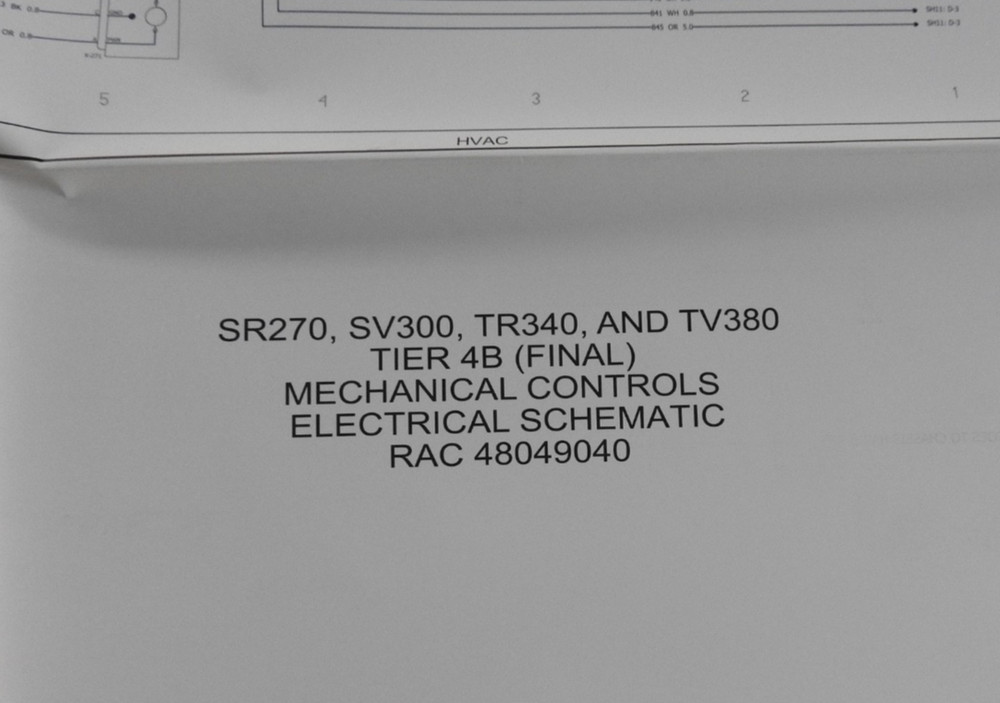

(2) Case IH SR270 SV300 TR340 TV380 SKID STEER Electrical Schematic Set 36″x24″
USD 85.76 USD
Specifications
| Brand | Case |
| Type | Schematic Manual Set |
| Model Year | 2017 & UP Mechanical |
| Model | SR270 SV300 TR340 TV380 |
| Compatible Equipment Make | Case IH, Farmall, Case |
| Equipment Type | Tractor |
| Country Of Origin | United States |
These are large fold-out diagrams at 36" x 24". This set has super illustrations as well as having in-depth electrical wiring diagram information for these hardworking Case skid steers. There are four pages printed on two sheets.
