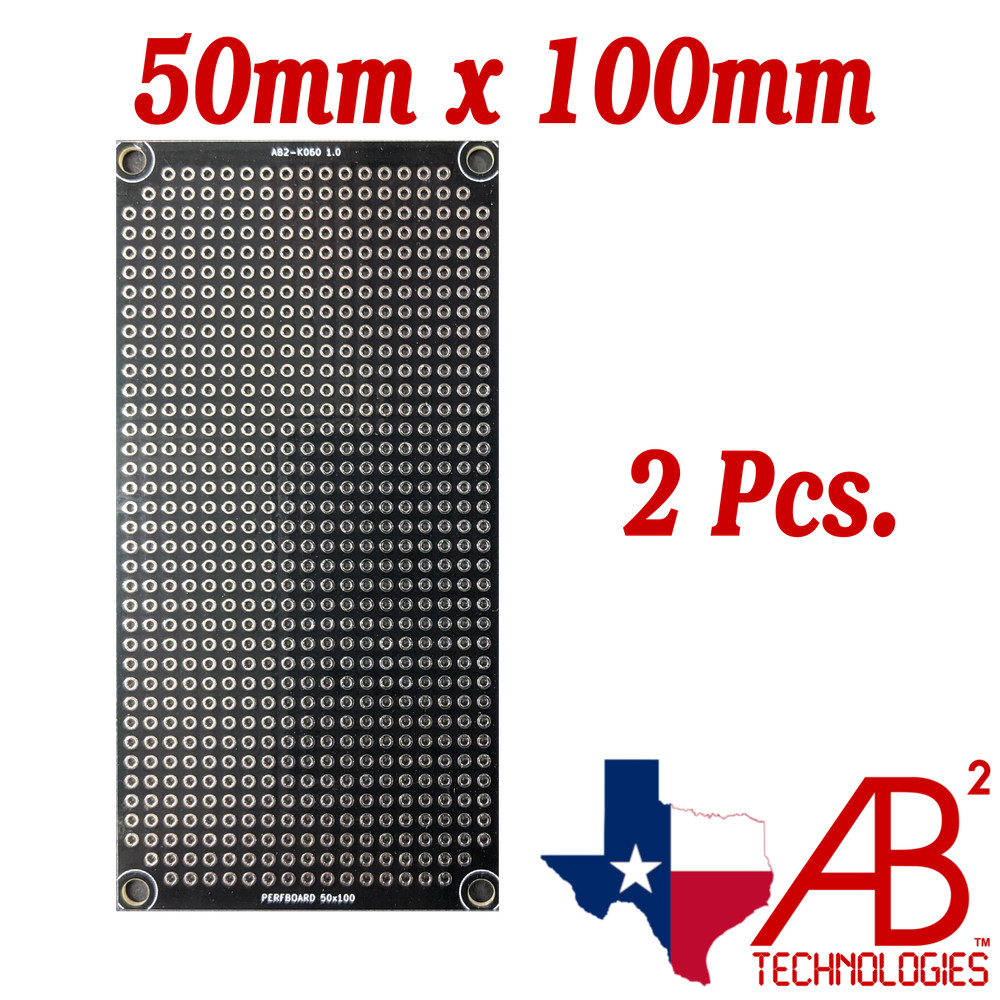

2 Pcs Black PCB Proto / Perf Boards Double Sided 50mm x 100mm (Panel of 2)

2 Pcs Black PCB Proto / Perf Boards Double Sided 50mm x 100mm (Panel of 2)

USD 2.30 USD

SKU: W9u5kYn4

Condition: New

Tags: 1.2 mm 100 mm 100mm x 100mm 30 Days 50 mm 691 AB2Tech AB2Tech Protoboards Chassis Mount China Double-Sided PCB FR-4 K060-1.0 Money Back Perfboard Returns Accepted Seller

Categories: Fasteners & Hardware

Specifications

Return Shipping Will Be Paid By	Seller
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Refund Will Be Given As	Money Back
PCB Type	Double-Sided PCB
Country/Region Of Manufacture	China
Item Height	1.2 mm
Item Width	50 mm
Mounting Style	Chassis Mount
Material	FR-4
Series	AB2Tech Protoboards
Type	Perfboard
MPN	K060-1.0
Number Of Tie-Points	691
Item Length	100 mm
Brand	AB2Tech

We occasionally need to quickly prototype and verify a design, so we created these perfboards to help speed up the proof of concept process. Since we are able to panelize these boards we would like to share them at a reasonable price and hope that you can find a use for them in your projects as well. Each 50mm x 100mm perf-board has 4 non-plated mounting holes with a diameter of 3.302mm (130mils). There are 691 plated through-holes on a 2.54mm (100mil) grid with 1.106mm (40mil) drill and 1.6764 (66mil) pad diameters. Solder Mask: BlackSilk Screen: WhiteDimensions: 1.96" x 3.94" (50mm x 100mm) Full v-scored sheet with 2 boards (2x1 array) is 100mm x 100mm. Thanks for looking!
