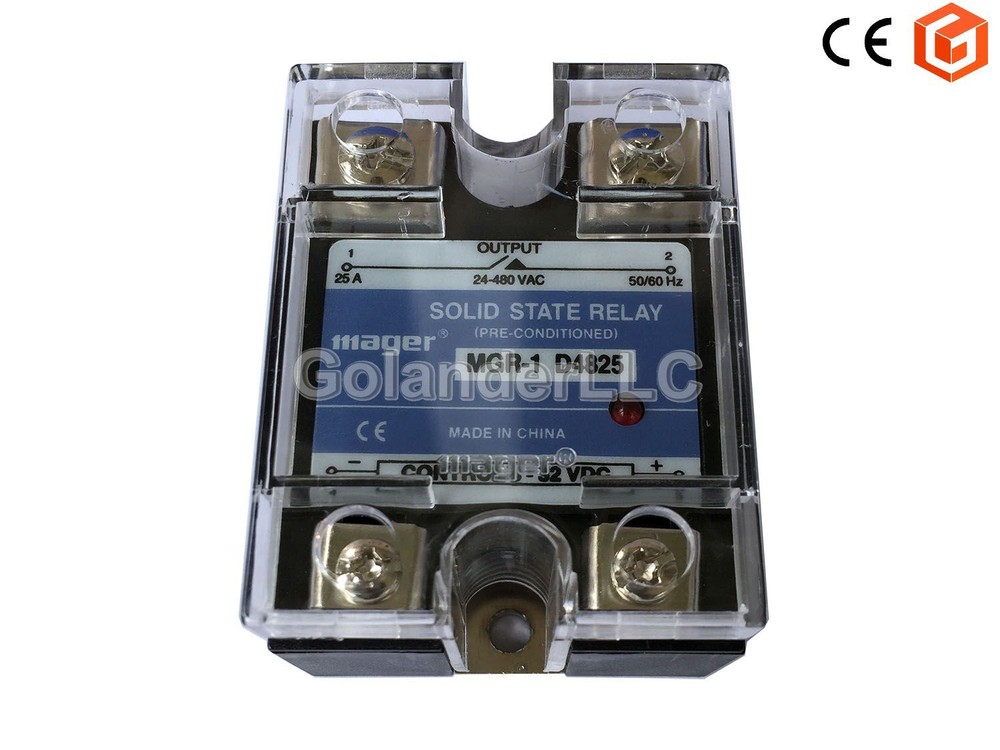

25A 3-32VDC to 24-480V AC Solid State Relay SSR + Clear Cover
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | GL-1 DA25 |
| MPN | GL-1 DA25 |
| Brand | Golander |
Up for sale is a 25A AC SSR. It's for switching AC power source from 24V to 480V. The control signal is 3-32V DC. Please note it needs a heatsink to work with it. Will be shipped from GA within 1 business day. Express shipping is available upon request. Thanks for looking. Description25A SSRManufactureGolanderManufacture’s Part NumberGL-1 DA25Input Voltage3-32VDCInput CurrentDC3-25mAOutput Voltage24-480VACCurrent Rating25AOutputTriacOn Voltage≤1.5VOff Leakage Current≤2mAOn-off Time≤10mSDielectric Strength2500VACInsulation Resistance1000MΩ/500VDCAmbient Temperature-30~+75 ℃Switch methodzero-cross turn onDimension2.25 x 1.75 x 1.25 (inch) , 57 x 32 x 45 (mm)Weight90gApprovalCE Note: To test an SSR, the easiest way is to use a bulb. Please check the following video. A multimeter won't help since there's a small current leakage even if the output of the SSR is open.Youtube video link. Crydom TechLab 1 - How to perform an operational on-off test on a solid state relay - YouTube Video will open in a new window [isdntekvideo]
