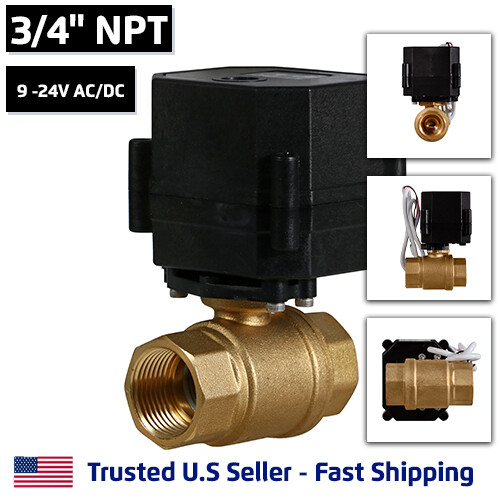

3/4″ 9-24V AC/DC Motorized Electric Ball Valve 9 12 to 24 Volt Slow Close 2 Wire
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Atlantic Valves |
| MPN | BVB5CV-XR22-J |
| Body Material | Brass |
| Operation Type: | Normally Closed |
| Port Size: | 3/4'' NPT |
| PSI Range | 0 - 185 PSI |
| Temp Range | 15 to 250° F |
Untitled Document AUTO RETURNS WITH POWER LOSS9-24 Volt Ball ValveAuto Detects Voltage Function Normally Closed Connection 3/4” Inch FNPT Temperature Range 15 – 250°F Pressure Range 0 – 185 PSI Power Requirements 500 mA While Actuated XR22 Wiring Type 2 Wire Auto Return Operation Type Bi-Directional Closing Time 5 Seconds *Suitable Media Water – Air - Fuel -*Etc Specifications Body Material Brass Components Stainless Steel Seal Material Viton® Diaphragm Ball Seat PTFE Max Torque 2 Nm Orifice Size 3/4" Connection Lead Wires *Duty Cycle 100% but not indefinitely Weight 15.7 oz Height 4.20" Length 2.56" port to port Width 2.56" Ball valves are great alternatives to solenoid valves. While solenoid valves require constant power to hold position, ball valves do not have this large power requirement. Instead, while in the open position, the ball valve will trickle charge an internal capacitor with a negligible amount power. This internal capacitor then allows the valve to shut when the power is cut. These are also full port valves where flow is not restricted. This ball valve is bidirectional, allowing for flow in both directions without issue. It is also slow closing, taking 4-5 seconds to completely open/close, eliminating any potential water hammer effect. The actuator is IP67 rated, the NEMA 4 equivalent, making this valve acceptable for outdoor use. While splash resistant, the valve should not be submerged in water. For convenience, there is a position indicator on the top of the valve. *Consult a chemical compatibility expert for correct seal and valve body material choice. Listing and template services provided by inkFrog
