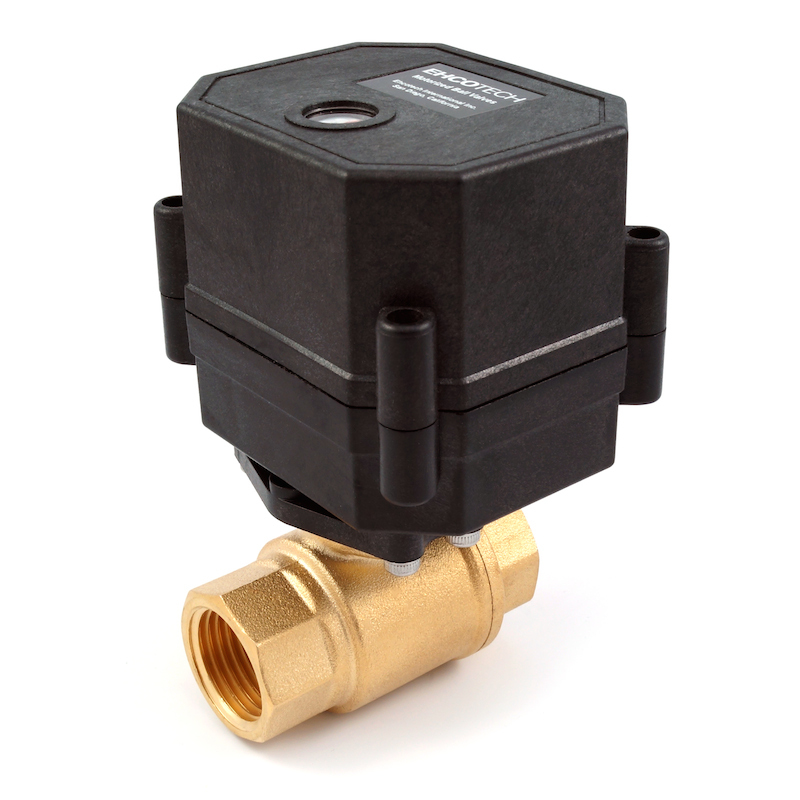

3/8″ NPT Motorized Ball Valve Body 9, 12V to 24V AC / DC 3-wire Brass FKM/PTFE
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | EHCOTECH |
| MPN | M21BV-3/8-E3BW |
| Port Size | 3/8" NPT |
| Valve Body Material | Brass |
| Pressure Range | 0 to 215 psi |
| Suitable Media | Water, Air, Fuels etc. |
| Type | Normally Closed, 2-wire |
| Other | Gravity Feed Capable |
| Voltage Detection | Automatic |
Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. EHCOTECH M21BV-3/8-E3BW MOTORIZED BALL VALVE 3/8" NPT | Brass Body | 3-Wire Actuator | 0 - 215 psi | 9 to 24V DC/AC General FREE 2 to 4 DAY SHIPPING, ships within one business day from San Diego, California 2-way, bidirectional 3-wire actuator - See Electrical/Wiring section below for details Visual valve position indicator 4 second cycle time from closed to open and vice versa Excellent choice for gravity feed applications Excellent choice for activations prone to water hammer Excellent choice for applications requiring long activation periods Port Size 3/8" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.675 inches / 18 TPI Full port design (3/8" or 10 mm internal port diameter) Straight through design (no directional changes inside valve) Pressure and Temperature 0 to 215 psi (0 to 15 BAR) Max media temp: 265º F (130º C) Superior to solenoid valves in gravity feed and low pressure applications Suitable Media Water, Air, Fuels, etc. Media must be compatible with FKM (Viton) rubber (check with us for compatibility) Electrical / Wiring 9 to 24-volt AC or DC (auto detects voltage) 200 mA max while ball is turning 20" power cable with 3 leads 3-wire actuator - Wired as follows: Black Wire: connect to negative Red Wire: Connect to continuous positive (allows closing of valve when green wire is de-enrgized) Green Wire: Connect to your switch or controller (energize to open valve / de-energize to close valve) Internal micro-switches stop current flow to motor when open/closed positions are reached Valve Materials Valve body: Brass Ball: Stainless Steel (SS304) PTFE (Teflon) Primary Seals, FKM (Viton) Secondary Seals Metal gears Dimensions Height: 3-7/8" Width: 2-1/2" Length: 2-7/8" Weight: 13 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right! All orders are shipped within 1 business day 30-day, hassle free returns 6 month warranty on all motorized ball valves Please use store categories on the left side to explore our other valves Copyright © Ehcotech International Inc. 2015
