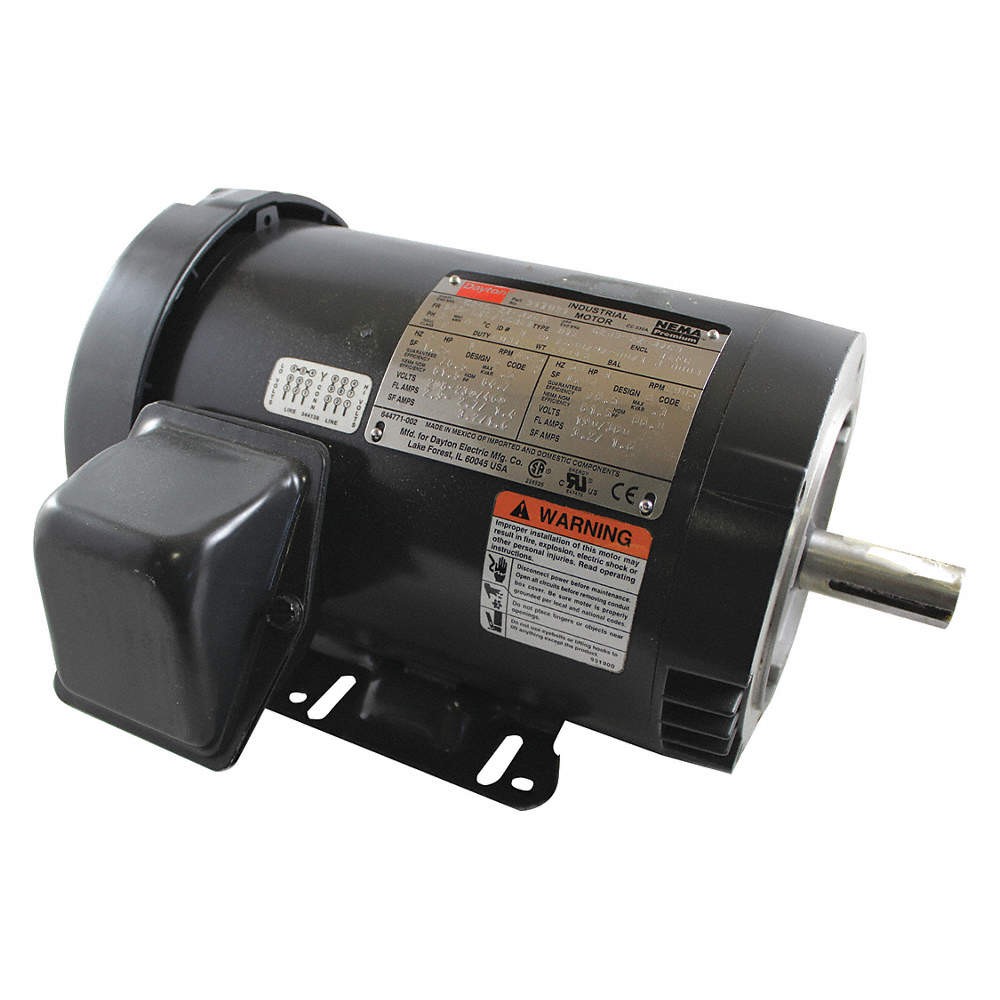

DAYTON 31TU38 GP Motor,3 HP,3,490 RPM,230/460V 31TU38
USD 734.36 USD
Specifications
| UPC | 0190735255155 |
| Brand | Dayton |
| Actual Rated Input Voltage | 208-230/460 |
| Full Load Amps | 3.3-3.0/1.5 |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | ODP (Open Drip-Proof) |
| Base RPM | 3470 RPM |
| Model | Dayton 31LH48 |
| MPN | 31LH48 |
| Starting/Locked Rotor Torque | Steel |
| Mounting Type | Face-Mounted |
| AC Phase | Three Phase |
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 3 hp HP, Nameplate RPM 3490, Frame 143-5TC/56HCZ, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Face/Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600 Motor is inverter rated, meets NEMA MG 1 Part 31; 10:1 variable and 4:1 constant torque. Includes Dayton integral and fractional HP motor installation guide.
